Ortofon

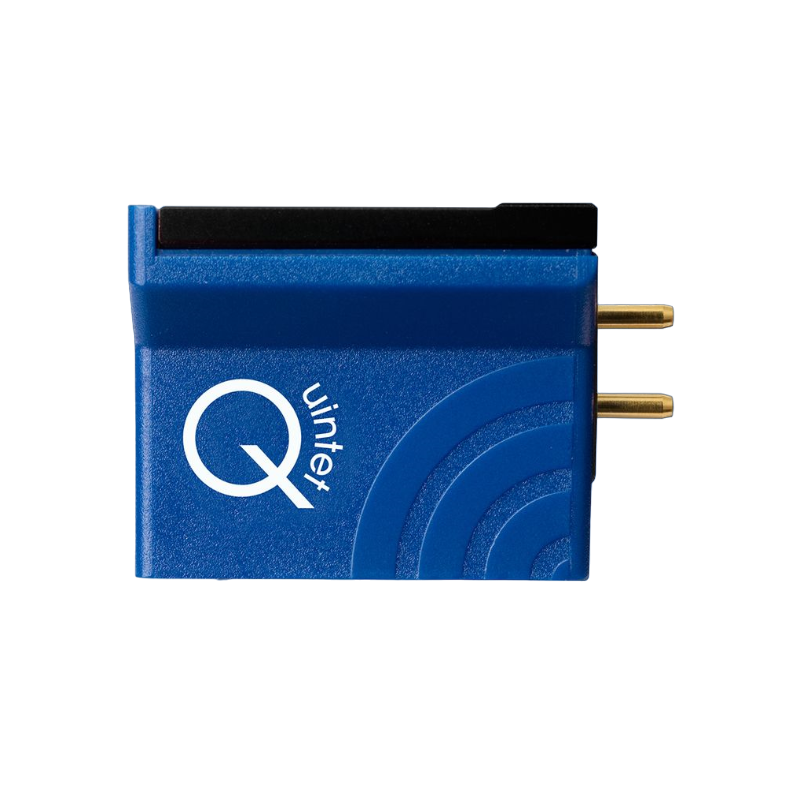

Quintet Blue | MC Phono Cartridge

Regular price
$768.00
Regular price
Sale price
$768.00

Why we love it

Awards
Description

The Quintet Blue features a bare elliptical diamond mounted on an aluminum cantilever. It is a very good choice for any type of music, especially rhythmic.

Click here for more information

Specifications
  • Output voltage at 1 kHz 5 cm/sec - 0.5 mV
  • Channel balance - < 1.5 dB
  • Channel separation at 1 kHz - > 21 dB
  • Channel separation at 15 kHz - > 14 dB
  • Frequency response 20-20,000 Hz - +/-2.5 dB
  • Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
  • Compliance, dynamic, lateral - 15 μm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force recommended - 2.3 g (23 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 7 Ohm
  • Recommended load impedance - >20 Ohm
  • Cartridge body material - ABS/Aluminium
  • Coil wire material - Pure 4-nines silver
  • Cartridge weight - 9g
Comparators
Flavor

Warm : Adds softness to the music

Neutral : Close to the original intent

Detailed : Adds precision to the music

Warranty

1 year
