LUXMAN

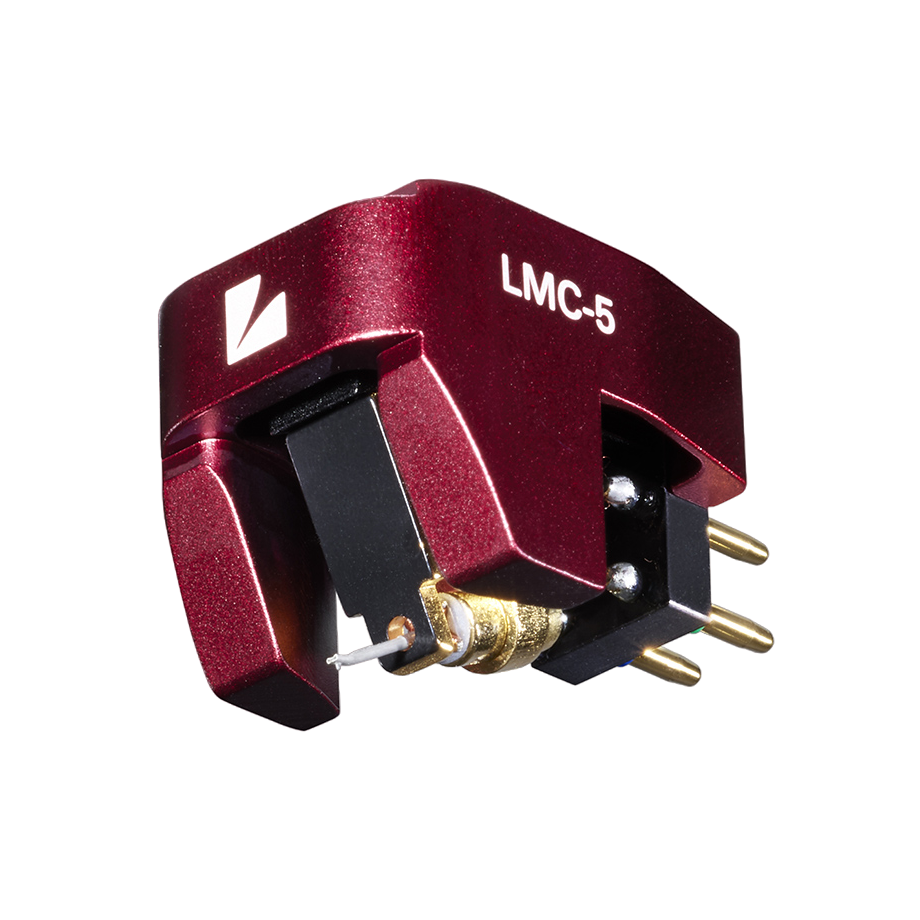

LMC-5 | MC Phono Cartridge

Regular price
$3,775.00
Regular price
Sale price
$3,775.00

Why we love it

Awards
Description

The LMC-5's reliable groove reading accurately articulates the most delicate music signals.

Click here for more information

Specifications
  • Type: MC (MOVING COIL)
  • Internal impedance: 4.7Ω (1kHz)
  • Tracking force: 2.1 to 2.3g (2.2g as standard)
  • Output voltage: 0.4mV (1kHz, 3.54cm / sec.)
  • Frequency response: 10Hz to 35kHz
  • Channel separation / balance: 28dB (1kHz) / 0.5dB (1kHz)
  • Recommended load impedance (when head amplifier is connected): 40Ω or more
  • Recommended load impedance (When step-up transformer is connected): 2.5 to 10Ω
  • Dynamic compliance: 8 x 10-6cm / dyne (100Hz)
  • Stylus: Solid diamond / SHIBATA stylus
  • Cantilever: Φ0.5mm aluminum
  • Vertical tracking angle: 25°
  • Magnet: Samarium-cobalt magnet BH20
  • Coil: 30μm UEW
  • Material of magnetic circuit: Pure iron
  • Terminals: Φ1.2mm, White (L+) , Blue (L−) , Red (R+) , Green (R-)
  • Body: Aluminum A6063
  • Dimensions, Threaded holes: 17.0 (W) x 18.3 (H) x 21.3 (D)mm (excluding terminals), M2.6mm x 2
  • Weight: 8.5g
Warranty

1 year
