A-300 | Mono Amplifier | Class-A

• Made in Japan

• Stereophile

The A-300’s unmatched expressiveness lets you enjoy the most exquisite pieces from the world’s greatest composers.

Click here for more information

• Class A driven output stage with 20-parallel push-pull power MOS-FETs
• Continuous Average Output Power (20 - 20,000 Hz) 8 ohms 125 W | 4 ohms 250 W | 2 ohms 500 W | 1 ohm 1000 W
• Current feedback amplification circuits
• Balanced Remote Sensing
• Double MCS+ circuit
• High damping factor of 1,000
• Speaker output protection
• Highly reliable MOS-FET switches with no mechanical connections
• Signal input section with a fully discrete configuration for low noise

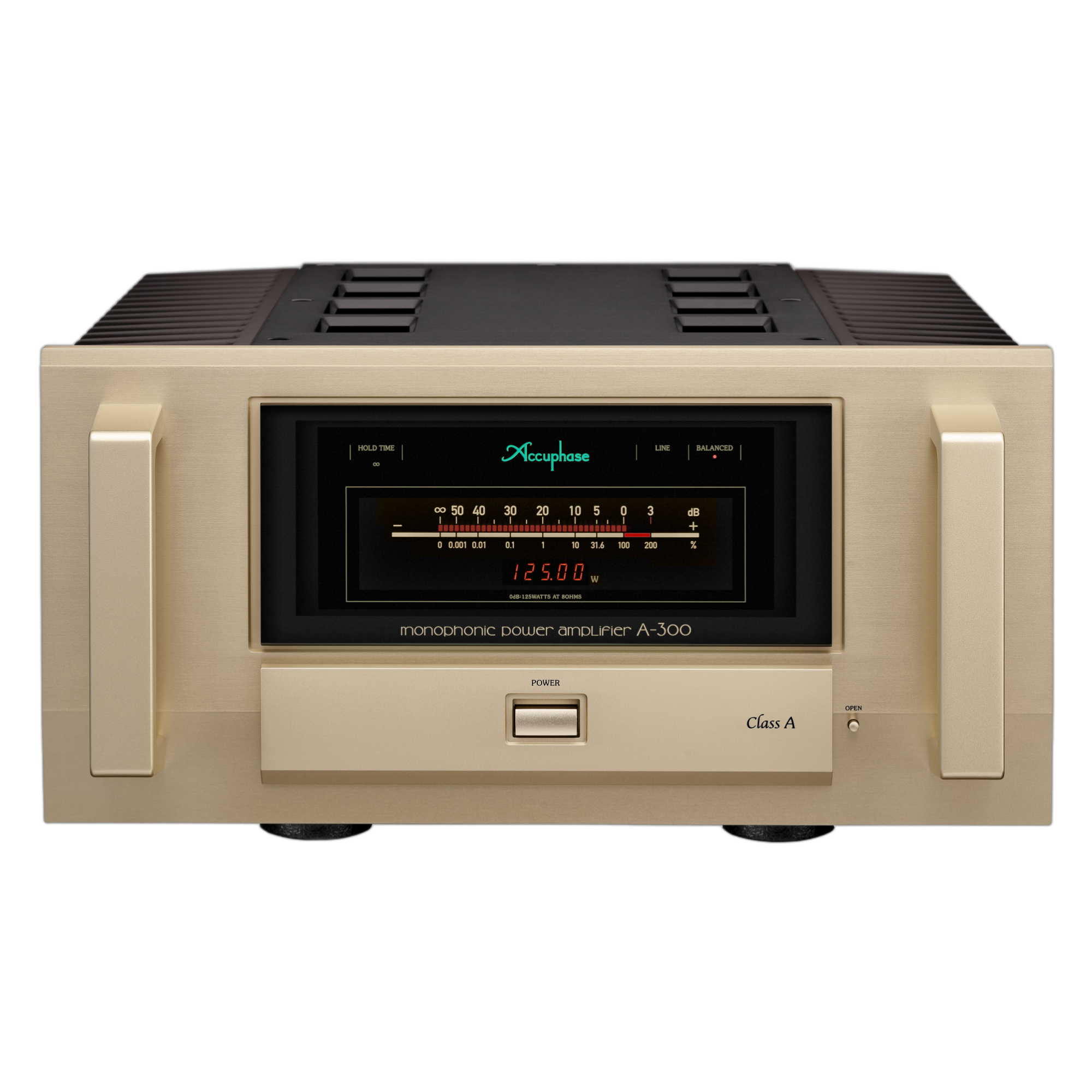

• Highly responsive large-scale bar graph power meter
• Connecting two pairs of A-300 supports bi-amping and bridged mode connection
• 4-step gain control
• High capacity 100,000 μF filtering capacitors
• Large speaker terminals connected directly to protection circuitry
• High-carbon cast iron insulator feet with superior damping characteristics
• Power amplification section on circuit boards using glass cloth fluorocarbon resin
• Aluminum hairline finish top plate
• Dimensions: Width 465 mm (18.3”) × Height 240 mm (9.4”) × Depth 515 mm (20.3”)
• Weight: 46.0 kg (101.4 lbs)

5 years
