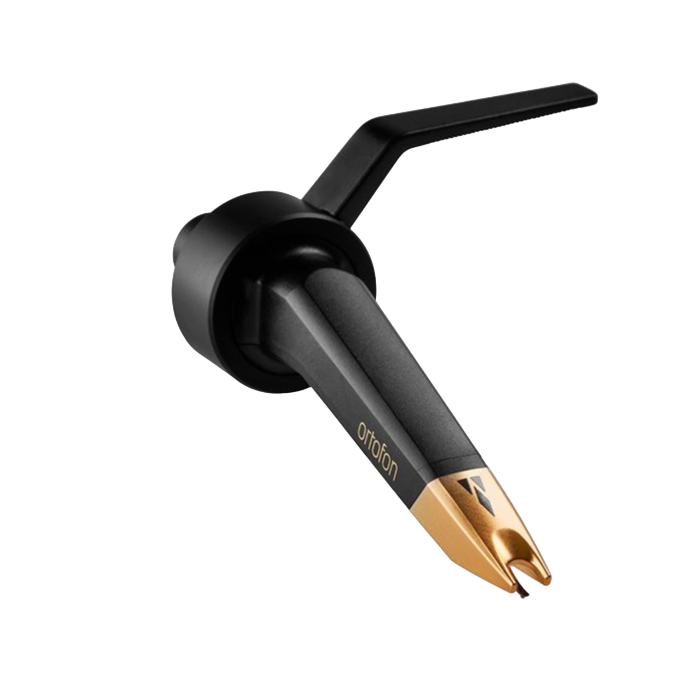

Concorde MKII ELITE | MM Phono Cartridge

The Concorde ELITE is a cartridge based on Ortofon heritage.

Click here for more information

• Output voltage at 1000 Hz, 5cm/sec. - 8.5mV
• Channel balance at 1 kHz - 1 dB
• Channel separation at 1 kHz - 25 dB
• Channel separation at 15 kHz - 15 dB
• Tracking ability at 315Hz at recommended tracking force - 100 μm
• Compliance, dynamic lateral - 13 μm/mN
• Stylus type - Nude Elliptical
• Stylus tip radius - r/R 8/18 μm
• Tracking force range 2.0-4.0 g
• Tracking force recommended - 3.0 g
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.2 kOhm
• Internal inductance - 800 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-400 pF
• Cartridge weight excluding screws - 18.5 g
• Cartridge color (body/stylus) - Black/Gold
• Replacement stylus unit - ELITE

1 year
